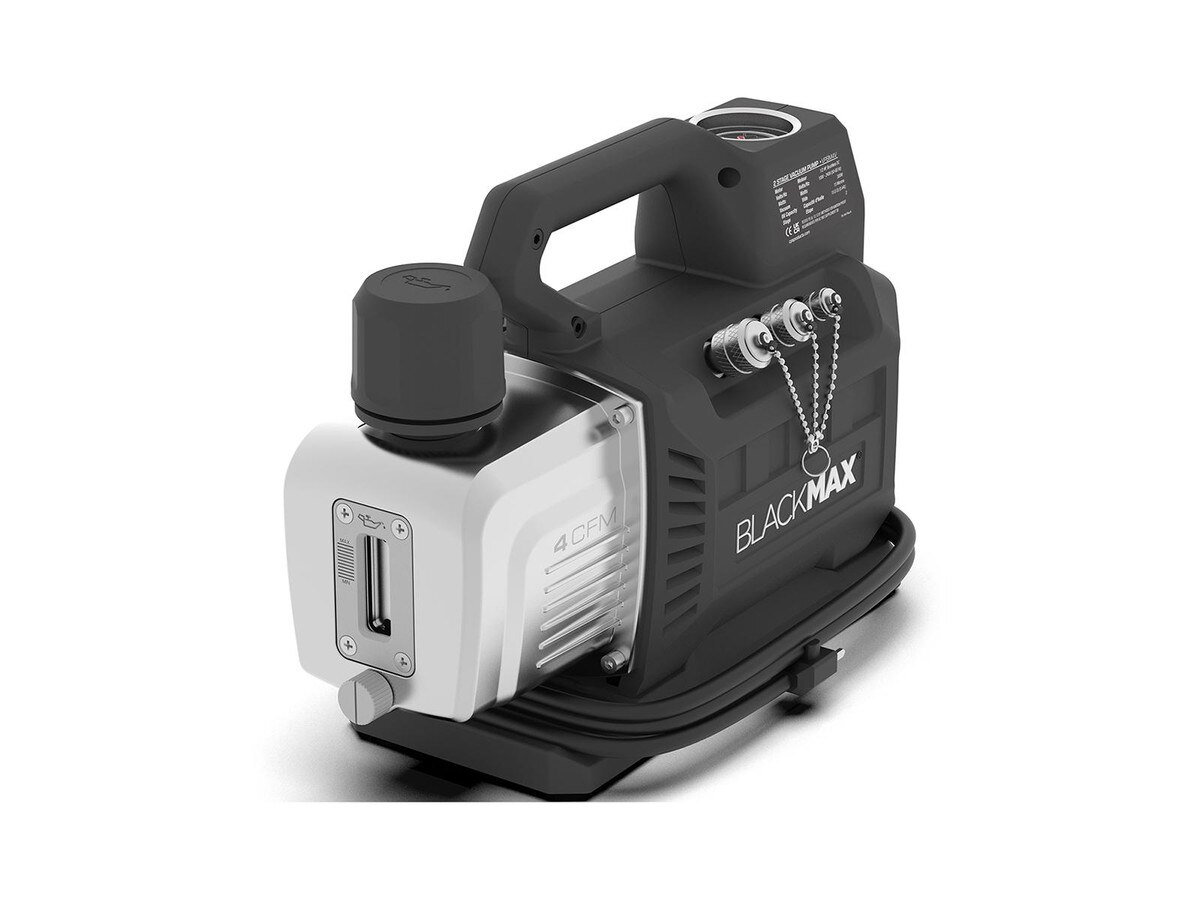

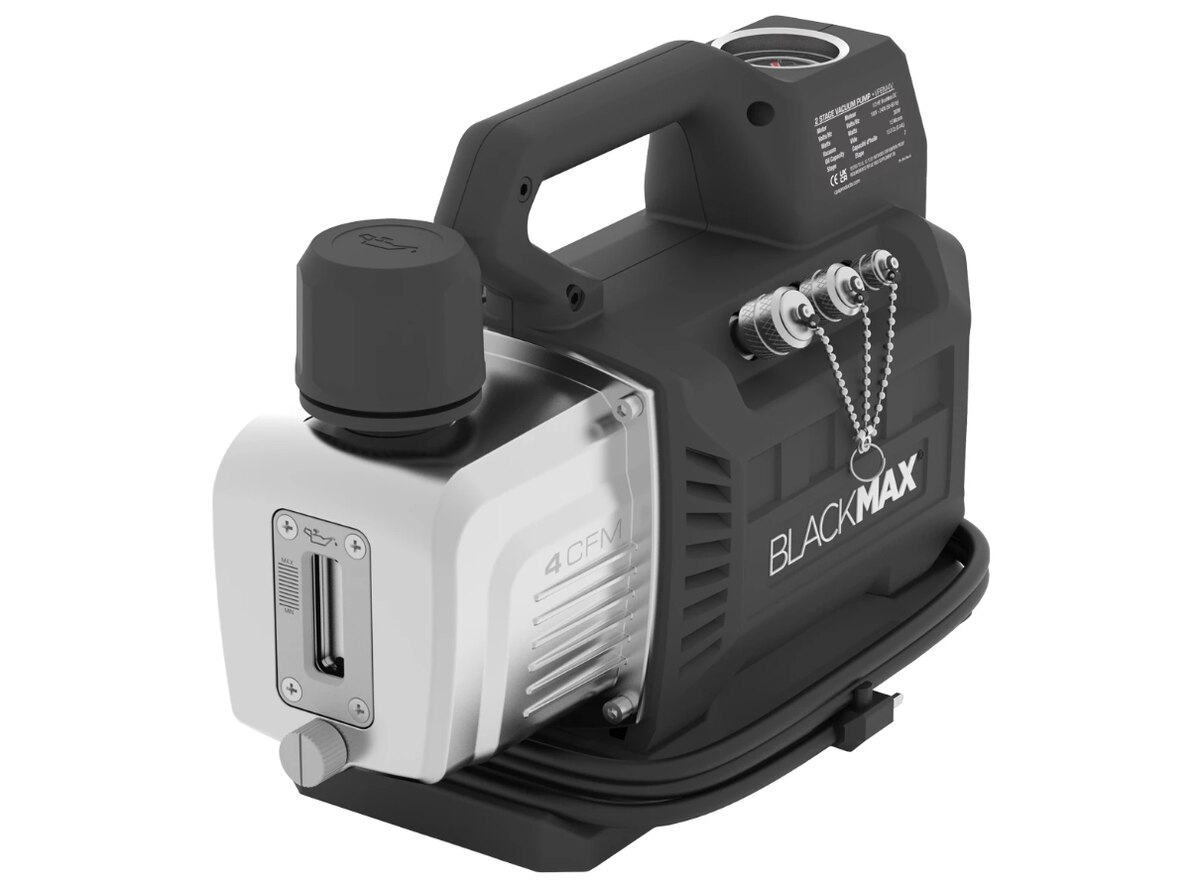

CPS VPBM4V CPS VPBM4V BlackMax 4 CFM Vacuum Pump
In Stock
Key Features:
- Lightweight (18.2 Lbs / 8.25 Kg)
- Compact, portable size (0.48 cu. ft.)
- 1/2 HP, variable speed, brushless DC motor
- 100 to 240VAC (50/60Hz) universal voltage
- In-line 1/2″, 3/8″,1/4″ hose connection ports
- Stores/operates in extreme temperatures
- Auto shut-off solenoid valve
- Analog vacuum gauge
- Large vertical oil sight glass
- Closed, hoist-type handle
- 15 Micron ultimate vacuum
- Quiet Operation
- Maximum Free Air Displacement: 4 CFM
- Stage: 2
- Ultimate Vacuum: 15 Microns
- Refrigerant Class: Compatible With Residual A1, A2L, A2, A3 Refrigerants (Not A Recovery Machine)
- Voltage: Universal Voltage: 100V min- 240V max, 50/60Hz
- Maximum RPM: 3200
- Motor Size (HP): 1/2 HP
- Watts: 300
- Ignition Proof On/Off Switch: Flashing Green: Standby; Solid Green: Pump Is Running
- Power Cord: Locking 90° IEC Type, 10 Ft (3m) Length
- Vacuum Pump Oil Capacity (Max): 15.0 Oz (0.44 L)
- Exhaust/Oil Fill Cap: Mist Free
- Analog Vacuum Gauge: Units: kPa, InHg (Accuracy +/-2%)
- Gas Ballast Valve: Drys Out The 2nd Stage. Plated Brass
- Solenoid Valve: Normally Closed. Open When Vacuum Pump Is Energized
- Operating Temperature Range: 5°F to 130°F (-15°C to 55°C)
- Thermal Overload Protection: Yes
- Pump Weight (W/o Pkg): 18.2 Lbs (8.25 Kg)
- Actual Size (mm): 10.0″ H x 5.8″ W x 13.8″ L (254 x 147 x 352 mm)
$850.00
